Bombardier Global 5000
SN: 9581 | A7-CEI
Highlights
| VISION DECK SOFTWARE VERSION 5 UPGRADED | ADS-B OUT | FANS 1/A | CPDLC |
| HEAD-UP DISPLAY (HUD) SYSTEM AND GRAPHICAL FLIGHT PLANNING | 13 PASSENGERS WITH FORWARD GALLEY |
Cabin
13
06

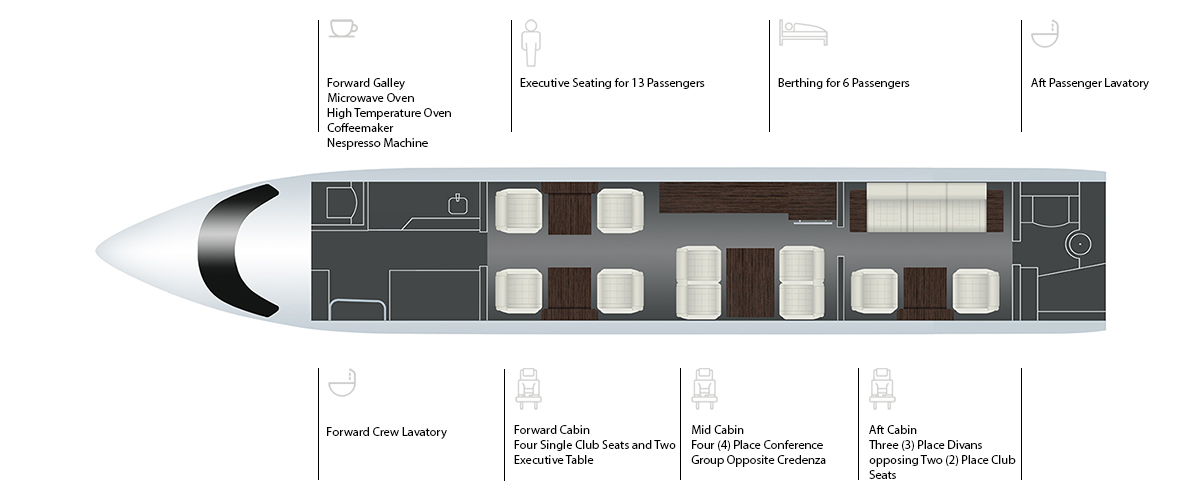

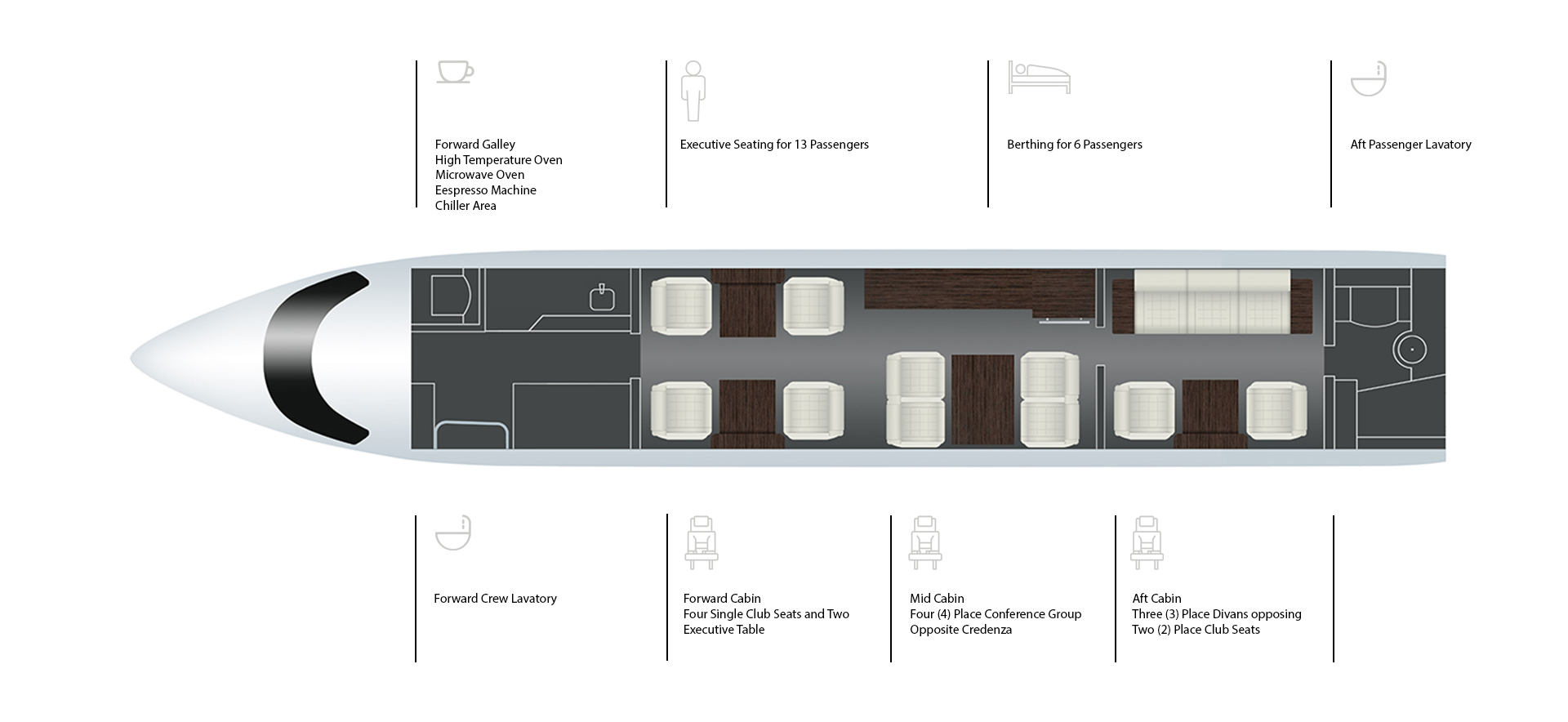

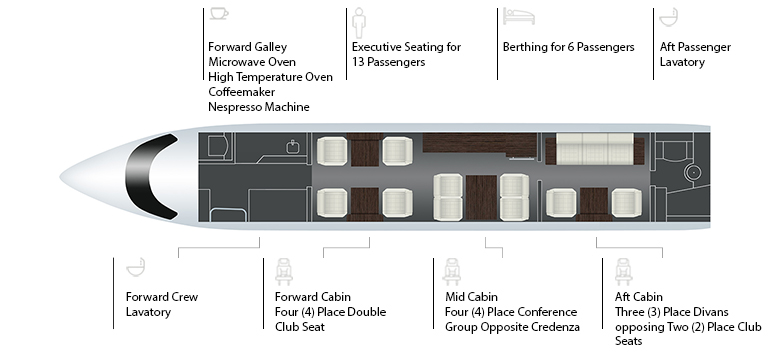

Cabin Description
| Executive Seating Capacity | Thirteen (13) |
| Cabin Berthing Capacity | Six (6) |
| Galley Location | Forward Galley |
| Lavatory Location/s | Forward crew lavatory and aft passenger lavatory |
| Interior Age Since New/Refurb | Original |
| In-Flight Entertainment | RWC VEE-6000 with CES Audio CD and Video DVD |
| Cabin Zones | Three (3) |
| Forward Cabin | Four (4) single place club seats and two executive tables |
| Mid Cabin | Four (4) place conference group opposite credenza |
| Aft Cabin | Dual (2) single club seats with opposing three (3) place divan |
| Interior Finishes - Wood Veneer | Dark |
| Interior Finishes – Leather | Light beige leather seating |
Airframe
| Entry into service | 2014 |
| Total Time Since New | 6,303.55 Hours |
| Total landings | 1,699 |
| Maintenance Tracking | CAMP |
| Weight | |
| Basic Empty Weight | 49,854 Lbs. |
| Basic Operating Weight | 50,861 Lbs. |
| Maximum Ramp Weight | 92,750 Lbs. |
| Maximum Takeoff Gross Weight | 92,500 Lbs. |
| Maximum Landing Gross Weight | 78,600 Lbs. |
| Maximum Zero Fuel Weight | 58,000 Lbs |
| Payload With Max Fuel | 2,930 Lbs. |
| Maximum Usable Fuel Capacity | 41,889 Lbs. |
Engines
| Left | |
| Description | BR700-710A2-20 |
| Total Hours Since New | 6,303.55 Hours |
| Total Cycles Since New | 1,707 |
| Right | |
| Description | BR700-710A2-20 |
| Total Hours Since New | 6,303.55 Hours |
| Total Cycles Since New | 1,707 |
| Auxillary Power Unit | |
| Make Model | HONEYWELL RE220 |
| Serial Number | P-712 |
| Total Time Since New | 4,732 Hours |
| Total Cycles Since New | 3,654 |
Cockpit
& Avionics
- ADS-B (OUT) DO260 A capability with DO260 B provision.
- Vision deck software version 5 upgraded
- Controller Pilot Data Link Communication (CPDLC)
- RNP4 capable
- FANS 1/A capability with CPDL communication and ADS-C surveillance features
- Surface Management System activation T/OFF and Landing Awareness Function, provides surface situational awareness at airports
- (EVS) -the mid-wavelength infrared (MWIR) sensing camera system
- (SVS) with Synthetic Vision Module provides virtual landscaping images for video display on the head down displays
- Head-Up Display (HUD) system and Graphical Flight Planning
- Solid state colorful Weather Radar system
- Emergency Locator Transmitter (ELT) of ARTEX B406-4 Model
Range & Performance
Departure Airport
Exterior
| Base Paint Color | White |
| Last Painted Date | Original |
