Stanton & Partners Aviation
2008
Gulfstream G200
Highlights
| ENGINE ENROLLED ON ESP GOLD | APU ENROLLED ON MSP | ENHANCED NAVIGATIONAL PACKAGE |
| FWD GALLEY | PART 135 COMPLIANT | UPGRADE TO COLLINS GPS-4000S |
| HIGH SPEED DATA INTERNET – ATG-5000 | TCAS-4000 W/ CHANGE 7.1 |
| AIRCELL AXXESS II AIRBORNE SYSTEM | NO DAMAGE HISTORY |

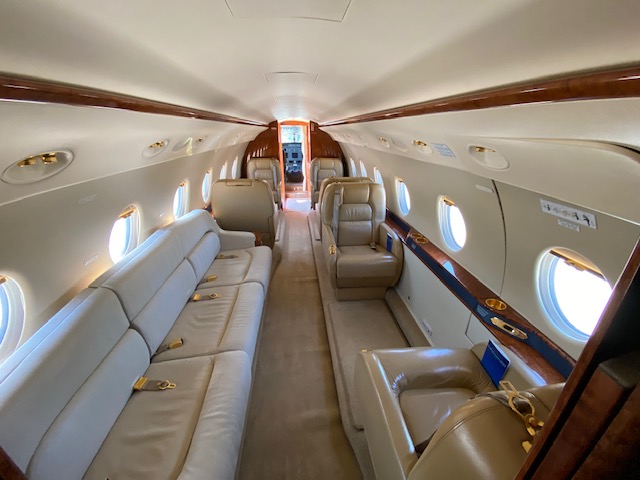

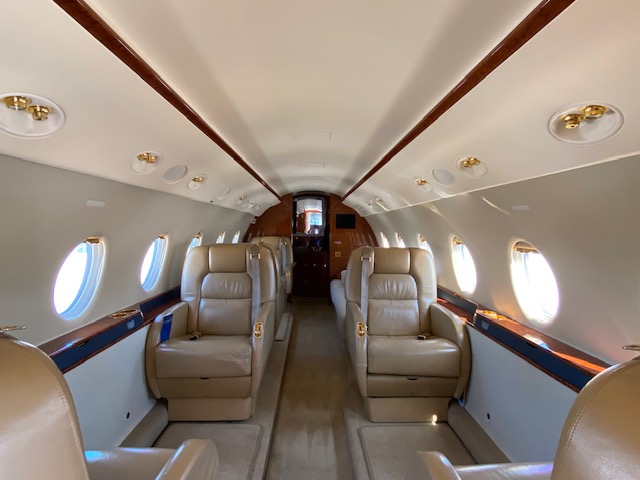

Cabin
9
04

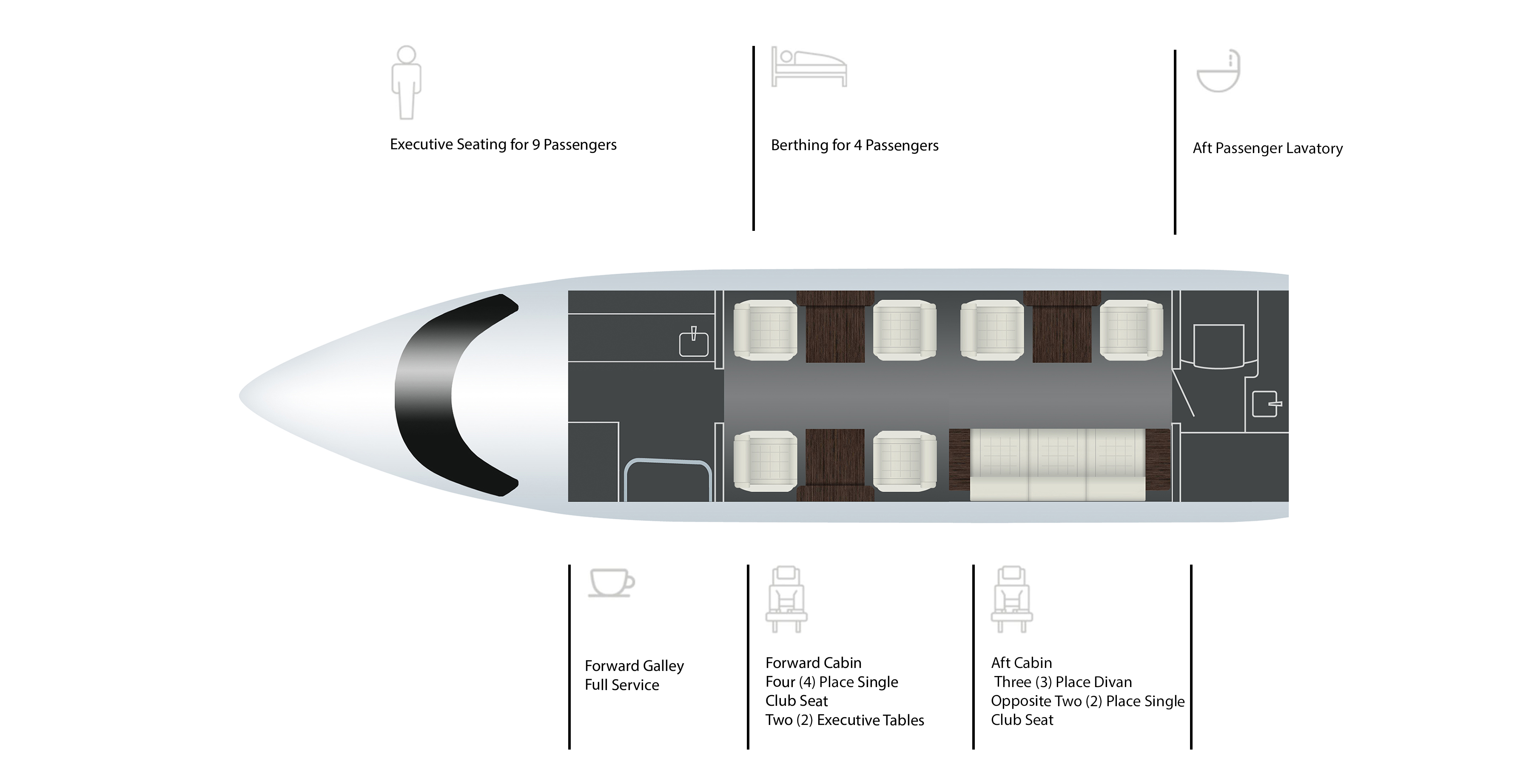

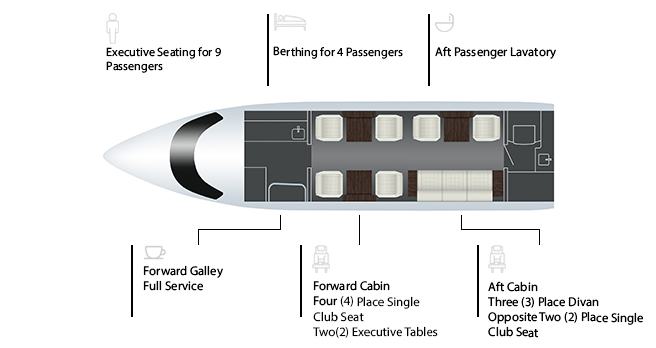

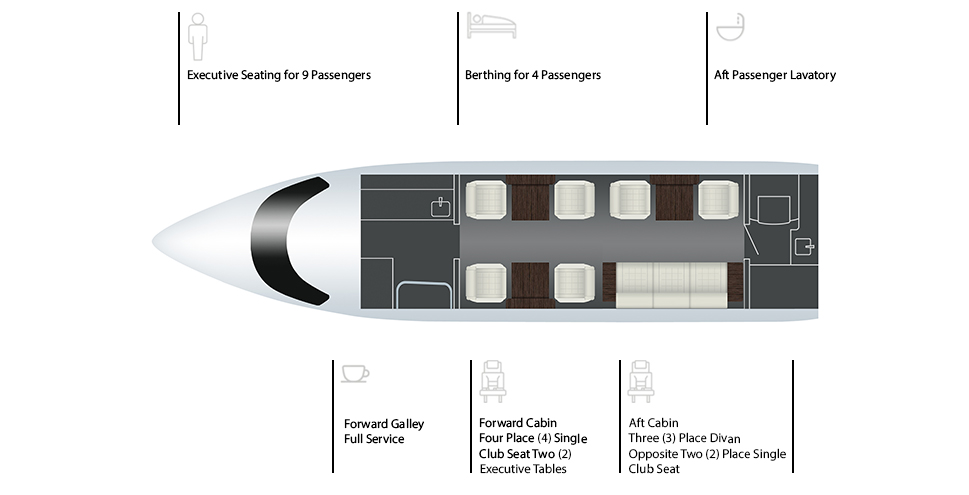

Cabin Description
| Executive Seating Capacity | Nine (9) passengers |
| Cabin Berthing Capacity | Four (4) |
| Galley Location | Forward Galley |
| Galley Equipment | Full Service |
| Lavatory Location/s | Aft Lavatory |
| Interior Age Sine New/Refurb | 2016 |
| Cabin Zones | Two (2) |
| Forward Cabin | Four (4) Single Place Club Seats |
| Aft Cabin | Three (3) Place Divan Opposite Two (2) Single Club Seat |
| Interior Finishes | Medium-high-gloss burl veneer woodwork & cabinetry |
| Interior Finishes | Leather Seating |
Airframe
| Total Time Since New | 8,836 |
| Total landings | 5,523 |
| Maintenance Tracking Program | MYCMP/CAMP |
| Weight | |
| Basic Empty Weight | 19,200 lbs |
| Basic Operating Weight | 19,950 lbs |
| Maximum Ramp Weight | 35,600 lbs |
| MaximumTakeoff Gross Weight | 35,450 lbs |
| Maximum Landing Gross Weight | 30,000 lbs |
| Maximum Zero Fuel Weight | 24,000 lbs |
| PayloadWith Max Fuel | 650 lbs |
| Maximum Usable Fuel Capacity | 15,000 lbs |
Engines
| Left | |
| Description | PW306A |
| Program | ESP Gold |
| Total Hours Since New | 5,925 |
| Total Cycles Since New | 3,537 |
| Right | |
| Description | PW306A |
| Program | ESP Gold |
| Total Hours Since New | 4,336 |
| Total Cycles Since New | 2,506 |
| Auxillary Power Unit | |
| Make Model | Honeywell GTCP36-150 (IAI) |
| APU Program | Honeywell MSP Gold |
| Hours | 5,679 |
Cockpit
& Avionics
- Collins Pro Line 4 w/ 5-tube EFD-4077 Displays
- Dual Collins FMC-6100
- Single Collins TCAS-4000 w/ Change 7.1
- Single DBU-5000 (USB)
- Dual Collins GPS-4000S w/ WAAS
- Dual Collins DME-4000
- Dual Collins TDR-94D Mode S w/ ADS-B Out
- Dual Collins ADC-850
- Dual Collins FCC-4005 IFCS
- Dual Collins VHF-4000E
- Dual Honeywell HF-950 w/ SELCAL
- Aircell Axxess II
- Single Collins NAV-4000
- Single Collins TRW-850
- Single Collins ALT-4000
- Single Honeywell Mark V
- Single Universal CVR-120R
- Single Artex C406-N 406 MHz
Additional
Equipment
- ADS-B Out v2 (DO-260B)
- High Speed Data Internet – ATG-5000 (U.S. Domestic Only)
- Airshow 410 System w/ DVD Player
- 8.33 Spacing and FM Immunity
- RVSM, VNAV, and RNP-10
- Dual Crew EVAS
Range & Performance
Departure Airport
Exterior
| Base Paint Color | Jet Glo Express Matterhorn White |
| Stripe Color | Clean Dual Line Gamma Gray Accent Strips |
| Last Painted Date | 2016 |
